| 用途 |
|
| 特點(diǎn) |
|

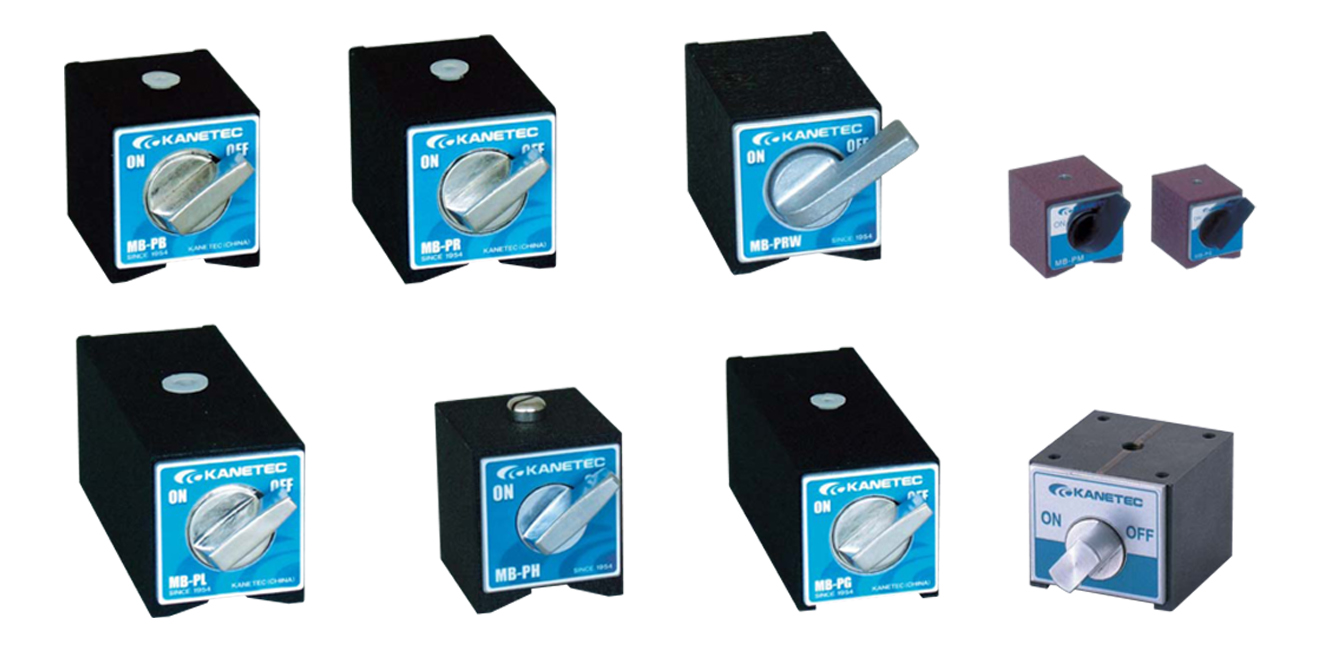

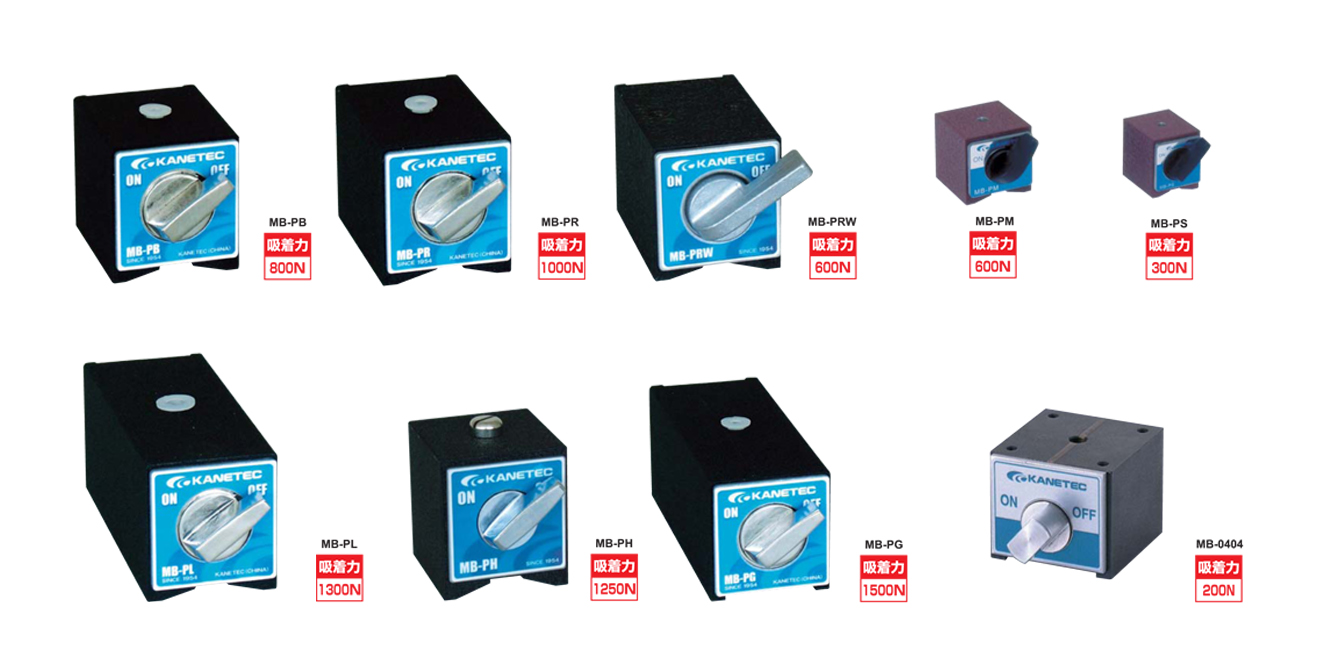

| 型號 | 吸著力(kgf) | 磁座尺寸(mm) | 螺紋孔/深度 | ||
|---|---|---|---|---|---|
| 寬 | 長 | 高 | |||
| MB-PB | 80 | 50 | 58.5 | 55 | M8X1.25深7 |
| MB-PR | 100 | 50 | 73 | 55 | M8X1.25深7 |
| MB-PRW | 60 | 50 | 73 | 55 | M8X1.25深7 |
| MB-PL | 130 | 50 | 117 | 55 | M10X1.25深7 |
| MB-PH | 125 | 70 | 70 | 80 | M12X1.75深11 |
| MB-PM | 60 | 40 | 40 | 40 | M6X1.0深6 |
| MB-PS | 30 | 30 | 34 | 35 | M5X0.8深4 |
| MB-PG | 150 | 50 | 120 | 52 | M8X1.25深7 |
