| 特點 |
|
| 用途 |
|

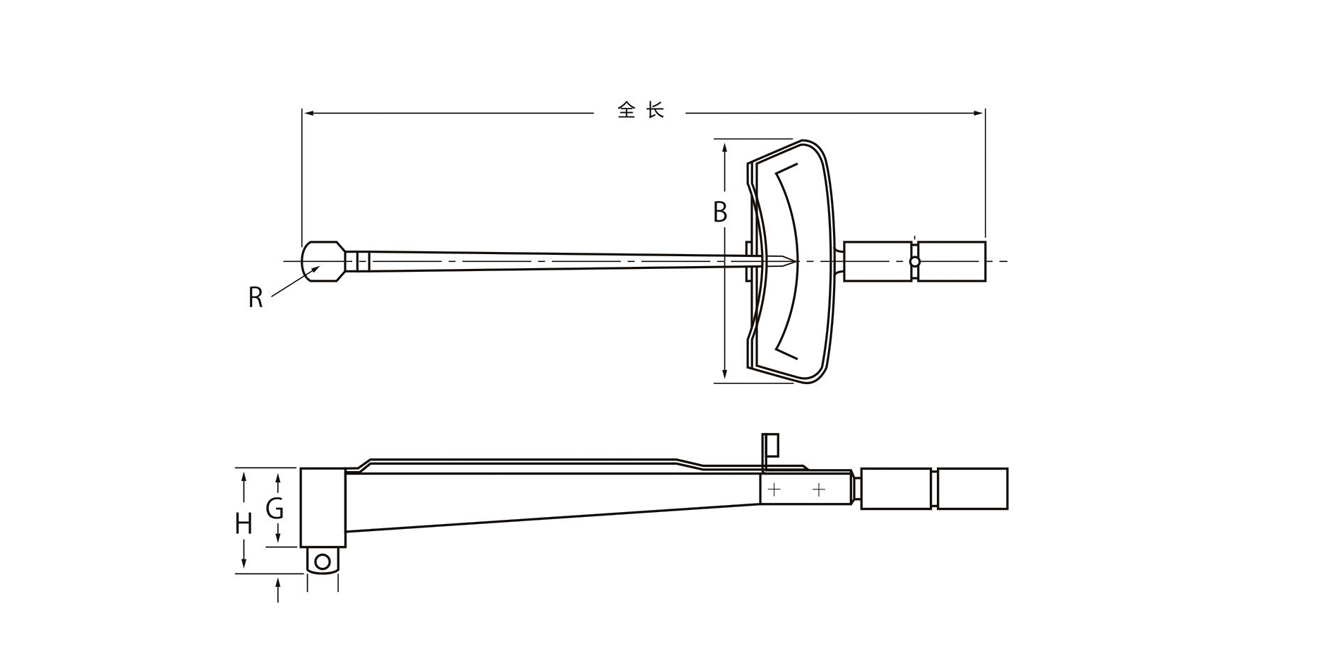

| 型號 | 調(diào)整范圍 | 最小讀值 | 型號 | 調(diào)整范圍 | 最小讀值 | 四角頭 | 全長 | 尺寸（mm） | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 公制 | kgf · cm | 牛頓 | cN · m/N · m | mm | H | G | R | B | |||
| 4FK | 1-4 | 0.2 | CN40FK | 10-40cN · m | 2cN · m | 6.35（1/4"） | 110 | 26 | 7.5 | 5 | 54 |
| 7FK | 1-7 | 0.2 | CN70FK | 10-70" | 2" | 132 | 26 | 7.5 | 5 | 75 | |
| 15FK | 5-15 | 0.5 | CN150FK | 50-150" | 5" | 140 | 26 | 7.5 | 5 | 75 | |
| 30FK | 10-30 | 1 | N3FK | 1-3N · m | 0.1N · m | 170 | 32 | 7.5 | 5 | 75 | |
| 60FK | 10-60 | 2 | N6FK | 1-6" | 0.2" | 190 | 36.5 | 7.5 | 6 | 85 | |
| 120FK | 20-120 | 5 | N12FK | 2-12" | 0.5" | 237 | 43.5 | 7.5 | 6 | 85 | |
| 230FK | 30-230 | 5 | N23FK | 3-23" | 0.5" | 9.35（3/8"） | 290 | 42 | 11 | 9 | 106 |
| 450FK | 50-450 | 10 | N45FK | 5-45" | 1" | 320 | 42 | 11 | 9 | 106 | |
| 900FK | 100-900 | 20 | N90FK | 10-90" | 2" | 12.7（1/2"） | 388 | 58 | 14 | 12.5 | 114 |
| 1300FK | 200-1300 | 20 | N130FK | 20-130" | 2" | 441 | 58 | 14 | 13.5 | 114 | |
| 1800FK | 300-1800 | 50 | N180FK | 30-180" | 5" | 487 | 58 | 14 | 13.5 | 114 | |
| 2800FK | 500-2800 | 50 | N280FK | 50-280" | 5" | 19.05（3/4"） | 587 | 82 | 20 | 15 | 124 |
| 4200FK | 700-4200 | 100 | N420FK | 70-420" | 10" | 853 | 48 | 20 | 28 | 186 | |
| 5600FK | 1000-5600 | 100 | N560FK | 100-560" | 10" | 946 | 48 | 20 | 31 | 186 | |
| 7000FK | 1000-7000 | 100 | N700FK | 100-700" | 10" | 1172 | 51 | 20 | 32 | 241 | |
| 8500FK | 1500-8500 | 200 | N850FK | 150-850" | 20" | 25.4（1"） | 1387 | 76.5 | 27 | 37 | 241 |
| 10000FK | 2000-10000 | 200 | N1000FK | 200-1000" | 20" | 1578 | 76.5 | 27 | 43 | 241 | |
| 15000FK | 3000-15000 | 200 | N1500FK | 300-1500" | 20" | 1973 | 76.5 | 27 | 50 | 241 | |
