| 特點 |
|
| 用途 |
|
單位：mm

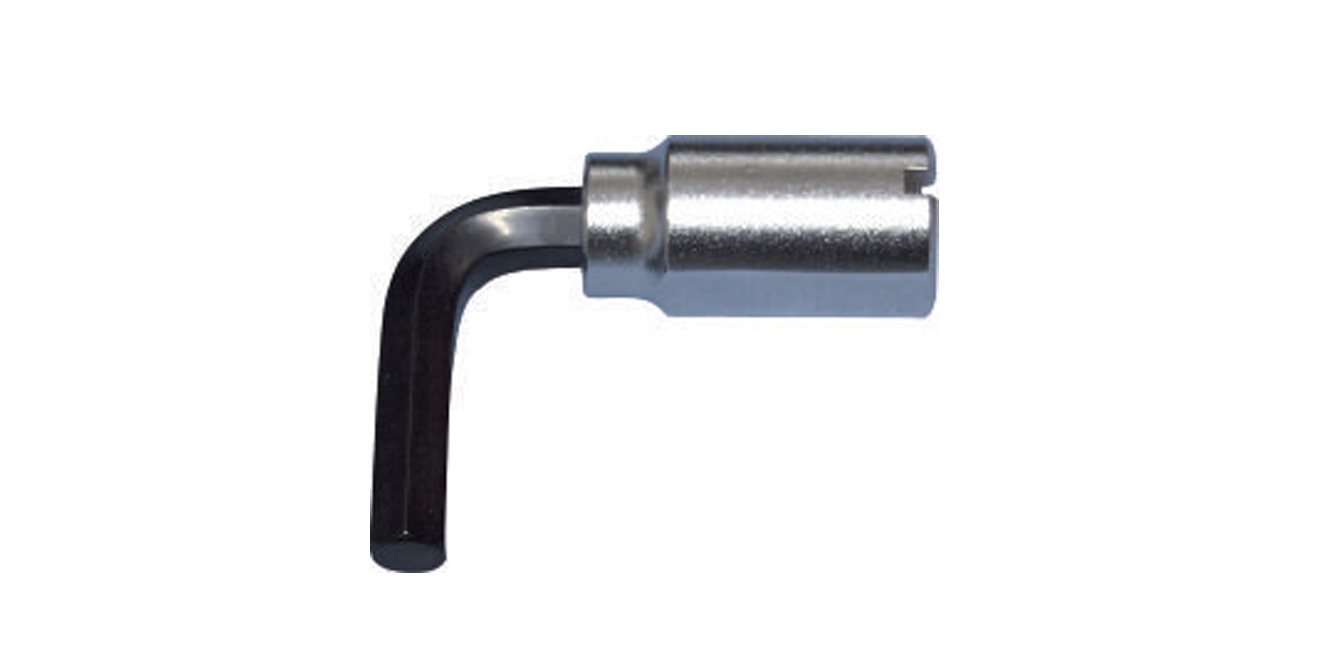

| 型號 | 尺寸 | L1 | φD1 | φD2 | 適用扭力扳手型號 |
|---|---|---|---|---|---|
| 25HCK | 2.5 | 45 | 10 | 19 |
60-250LCK, N6+N25LCK, 60--250SPCK, N6-N25SPCK, 250GCK, NA25GCK, DTC-20REV, DTC-50REV, DTC-100REV, DTC-CN200REV, DTC-CN500REV, DTC-N10REV, DTC-P140REV, DTC-P180REV |
| 3 | 22 | ||||
| 4 | 25 | ||||
| 5 | 30 | ||||
| 6 | 35 | ||||
| 8 | A0 | ||||
| 50HCK | 4 | 55 | 12 | 2Z |
500LCK, N50LCK, 500SPCK, N50SPCK, 500GCK, N50GCK, DTC-500REV, DTC-N50REV, DTC-P1400REV, DLTN50UC |
| 5 | 30 | ||||
| 6 | 35 | ||||
| 8 | 40 | ||||
| 10 | 45 | ||||
| 100HCK | 6 | 65 | 15 | 35 |
1000LCK, N100LCK, 1000SPCK, N100SPCK, 1000, 1400GCK, N100, N140GCK, 1000BCK, 1400BCK, N100BCK, N140BCK, DTC-1000REV, DTC-N100REV, DTC-P1800REV, DLT-N100-UC |
| 8 | 40 | ||||
| 10 | 45 | ||||
| 12 | 51 | ||||
| 14 | 63 | ||||
| 200HCK | 8 | 80 | 18 | 40 |
2000LCK, N200LCK, 2000SPCK, N200SPCK, 2000GCK, N200GCK, DTC-2000REV, DTC-N200REV, DTC-PF100REV, DLT-N200-UC |
| 10 | 45 | ||||
| 12 | 51 | ||||
| 14 | 63 | ||||
| 17 | 72 | ||||
| 280HCK | 12 | 100 | 22 | 51 |
2800LCK, N280LCK, 2800SPCK, N280SPCK,DTC-3000REV, DTC-N300REV, D1C-PF200REV |
| 14 | 63 | ||||
| 17 | 72 | ||||
| 19 | 80 |
