| 特點 |
|
| 用途 |
|

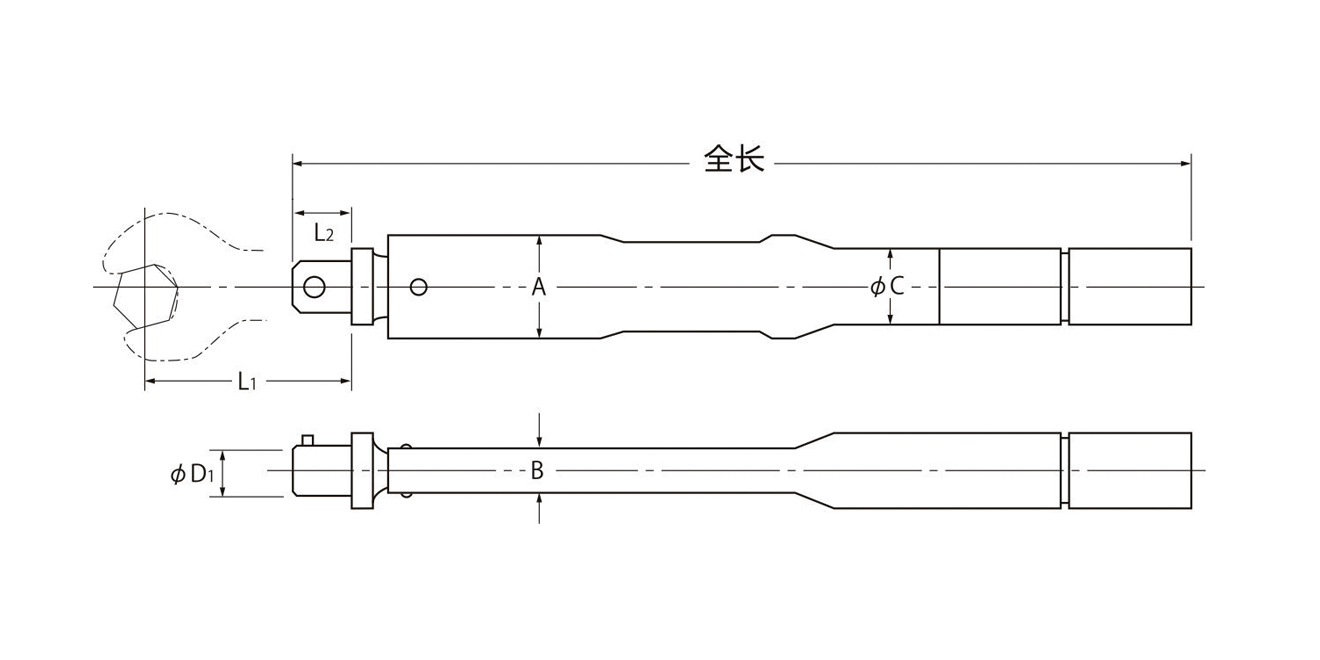

| 型號 | 扭力范圍 | 型號 | 扭力范圍 | 全長 | 主要尺寸（mm） | 適用可換頭 | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 頭部 | 主體 | ||||||||||
| Kgf · cm | N · m | mm | φD1 | L1 | L2 | A | B | C | |||
| 60SPCK | 20-60 | N6SPCK | 2-6 | 161 | 10 | 45 | 13 | 18.2 | 9.6 | 15 | 12QCK 25QCK 25SCK 25RCK 25HCK |
| 120SPCK | 40-120 | N12SPCK | 4-12 | 161 | 10 | 45 | 13 | 18.2 | 9.6 | 15 | 12QCK 25QCK 25SCK 25RCK 25HCK |
| 250SPCK | 50-250 | N25SPCK | 5-25 | 196 | 10 | 45 | 13 | 18.2 | 9.6 | 15 | 25QCK 25SCK 25RCK 25HCK |
| 500SPCK | 100-500 | N50SPCK | 10-50 | 220 | 12 | 55 | 16 | 25 | 11.4 | 20 | 50QCK 50SCK 50RCK 50HCK |
| 1000SPCK | 200-1000 | N100SPCK | 20-100 | 312 | 15 | 18 | 27.5 | 12.4 | 21.7 | 100QCK 100SCK 100RCK 100HCK 100NCK | |
| 2000SPCK | 400-2000 | N200SPCK | 40-200 | 428 | 18 | 80 | 22 | 34 | 15.4 | 27.2 | 200QCK 200SCK 200RCK 200HCK 200NCK |
| 2800SPCK | 600-2800 | N280SPCK | 60-280 | 590 | 22 | 100 | 27 | 38 | 16 | 30 | 280QCK 280SCK 280RCK 280HCK |
| 4400SPCK | 600-4400 | N440SPCK | 60-440 | 893 | 22 | 100 | 27 | 39 | 16 | 30 | 440QCK 440SCK 440RCK |
